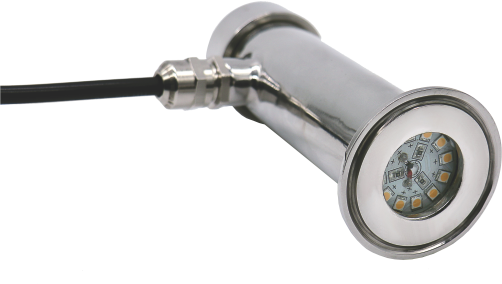

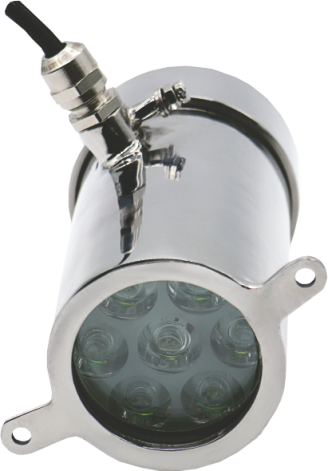

About Flame Proof Cum Weather Proof Lamps

- Certificate Flame proof cum weather proof LED Lamp
- Ex d IIC T5 Gb Combustible Gas Protection
- Ex tb IIIC T95°C Db Combustible Dust Protection (-20°С ≤ Ta ≤ +45°C) - 28 protection, IS/IEC IP 66, IP 68

Types: LED Cool White / Warm White (Umber) Lamps, Monochomatic, UV Lamps, Sodium Vapor LED Lamps.
Fitting Arrangement: TC, DIN, Bracket for Mounting, Flange Connection
Guarantee / Warrantee: LED Bulbs are Guaranteed for 15,000 Working hours.
Wattage: Available from 1 Watt to 35Watt (Luminous 93 to 150 per watt)
Supply Voltage: 12V, 24V DC, 110V & 230V AC

About Sight Glass Wipers

Certificate: NABL Lab Certificate for SS 316 L Contact & SS 304 Non Contact Parts, Biological/Food grade certificate for PTFE Wiper Blade and Gasket
Pressure Test Certificate, Borosilicate / Toughened Certificate, Handle TC
Types: PTFE/ Viton/ Neoprene/ Silicone/ PEEK
Pressure Rating: 1 Bar to 16 Bar
Vacuum Rating: 1 Bar to 6 Bar

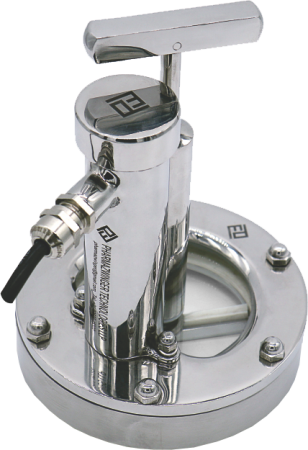

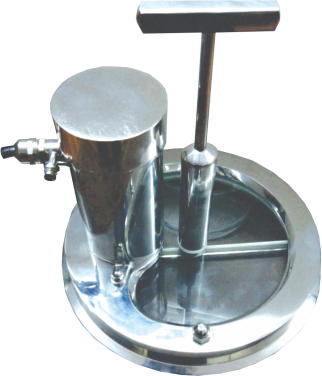

About Sight/View Glass Wiper Assemble

Certificate: NABL Lab Certificate for SS 316 L Contact & SS 304 Non Contact Parts, Biological/Food grade Certificate for PTFE Wiper Blade and Gasket Pressure Test Certificate, Borosilicate / Toughened Certificate, Handle TC
Styles: Tri Clover(TC) / DIN / FLANGE / With Camera and Auto actuating, together With LED Lamp in Single assemble. Wiper Assemble for duct pipeline.
Types: PTFE/Viton/ Neoprene/ Silicone/ PEEK
Pressure Rating: 1 Bar to 16 Bar

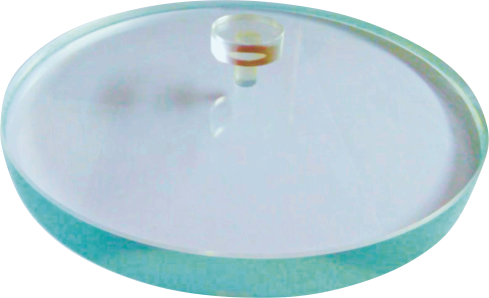

About Fused Glass

Certificate: NABL Lab Certificate for SS 316 L Contact & SS 304 Non Contact Parts, Pressure Test Certificate, Borosilicate / Toughened Glass Certificate
Styles: TC / DIN / FLANGE / With Camera and Auto Actuating wiper, together With LED Lamp in Single assemble.
Fused Handle of same glass
Types: Soda Lime / Borosilicate Glass
Pressure Rating: 1 Bar to 16 Bar
Vacuum Rating: 1 Bar to 6 Bar

About Dust Free Pulverizer / High Capacity Sifter

Dust Free Powder Pulverizer

Features
- Modular set up, Low foot print, Portable unit, Retrofitted in any system. Unique Designed milling assembly MOC in SA240, Gr.316Ti.
- Screening area is increased by 30%.
- Enhanced through put by 40 to 50%.
- Power consumption reduced by 40%.
- Options -Gravimetric or Volumetric dosing system.
- Easy dismantling & assembling of all components.
- No Heat generation during milling. Input & output is synchronized for better performance.
- Closed system controls dusting and contamination in production area.
- Nitrogen purging provided.
- Can be integrated to Blenders.
- PLC based control systems, with CFR 21 Part 11 control platforms.
- Efficient IE4,PMSM Synchronous Motors, high potential overload capacity, minimizes overall life cycle cost.
Sold and Marketed by: Pharmazwinger Technologies
Technology Partner: ACE Synergoes Technologies Inc

High Capacity Sifter

Features
- High Capacity SIFTER modern compact, robust and maintenance free design, enables for sieving, screening, reduction, mixing and de-lumping,
- High Capacity Sifter not only requires low foot print, but also delivers product with high output and can easily be used with continuous mode of operation Transfer mechanism.
- True vertical in-line design with no offset between inlet and outlet.
- Material feeds into the sifting chamber fitted with de-lumping device for wet material and spoils the dry compact, sticky and agglomerates material.
- Well Dynamically balanced high speed Screen throws the material by Centrifugal force,360º Discharge, delivers high thought put, assures a continuous flow of product through apparent openings of the screen reduces particle size.
- Impurities and other foreign materials retains in the screening chamber, can be easily removed.
- Final product collected in IPC, air borne during process can be suctioned by vacuum and retains fines across dust collector.
Sold and Marketed by: Pharmazwinger Technologies
Technology Partner: ACE Synergoes Technologies Inc
